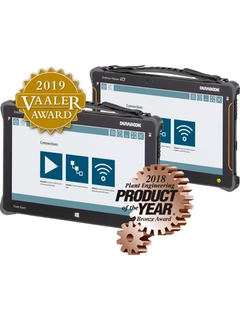

Tablet PC Field Xpert SMT70 ©Endress+Hauser

Tablet PC Field Xpert SMT70

Non-Ex Tablet PC Field Xpert SMT70 ©Endress+Hauser

Non-Ex Tablet PC Field Xpert SMT70

Ex Tablet PC Field Xpert SMT70 ©Endress+Hauser

Ex Tablet PC Field Xpert SMT70

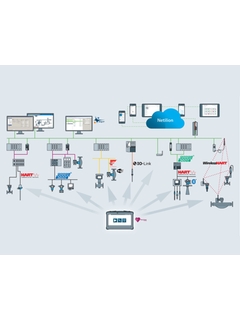

Network architecture ©Endress+Hauser

Network architecture

Start screen with one-click automatic scan button ©Endress+Hauser

Start screen with one-click automatic scan and assistant button.

Protocol selection for manual selection of connection ©Endress+Hauser

Protocol selection for assisted selection of connection.

Device configuration ©Endress+Hauser

Device configuration

  • Tablet PC Field Xpert SMT70
  • Non-Ex Tablet PC Field Xpert SMT70
  • Ex Tablet PC Field Xpert SMT70
  • Network architecture
  • Start screen with one-click automatic scan button
  • Protocol selection for manual selection of connection
  • Device configuration

Universal, high-performance tablet PC for device configuration

The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage field instruments with a digital communication interface and to record progress. This tablet PC is designed as a complete solution that comes with pre-installed driver libraries and is an easy-to-use, touch-enabled tool which can be used to manage field instruments during their entire life cycle.

  • Výhody

    • High-performance, robust tablet with large 11.6" display and a battery runtime of up to 14 hours.

    • Touch-enabled device configuration software in 20 languages. Includes NAMUR NE 107 instrument diagnosis.

    • Pre-installed device driver libraries for all...

  • Oblast použití

    The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage field instruments with a digital communication...

Technické informace

Zpět

Details

  • Měřicí princip

    Konfigurátor zařízení

  • Funkce

    The Field Xpert SMT70 tablet PC for universal device configuration supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP). The devices can be connected directly via a suitable interface e.g. a modem (point-to-point) or a bus system (point-to-bus).

  • Vstup

    Camera:

    • 5 MP camera on the back with auto focus and LED flash with 1500 mcd

    • 2 MP camera on the front

    Scanner:

    • 1D/2D barcode scanner

  • CPU

    Intel Core i5-5200U (2,2...2,7 GHz)

  • Paměť

    • 8 GB with DDR3L adapter

    • 256 GB SSD M2-SATA robust version

    • Micro SD card slot, support for SDHC/SDXC

  • Napájení

    Replaceable, rechargeable lithium polymer battery, 11.1 VDC,
    4100 mAh (45 Wh)/7800 mAh (86 Wh) (optional)

  • Rozměry (š × v × h)

    298.5 mm x 192 mm x 20 mm

    (11.4 in x 7.48 in x 0.78 in)

  • Velikost obrazovky

    • 11.6" LCD display, with Gorilla Glass protector

    • Capacitive multi-touch screen

    • Optical bonding, sunlight readable, LCD (730 Nit)

    • Ambient light sensor

  • Rozlišení

    1366 x 768 pixels

  • Komunikační rozhraní

    • 2 x USB 3.0

    • Intel Wireless AC7260 802.11 a/b/g/n/ac, DUAL Band WLAN

    • Bluetooth 4.0 BLE, Class 1

    • 4G LTE WWAN + 12 channel GPS (optional)

  • Ovládání

    Operating system:

    • Windows 10 Pro (64 Bit)

  • Nastavení

    Touch-enabled device configuration software optimized for Field Xpert. The software supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP) and includes more than 2,700 pre-installed device and communication drivers.

  • Volitelně

    4G LTE WWAN + 12 channel GPS

  • Certifikáty

    Degree of protection:

    • IP65

    Shock resistance:

    • MIL-STD 810G 516.6 Procedure IV

    Electromagnetic Compatibility:

    Interference conformance to

    • EN 55022: 2010+ AC: 2011

    • EN 55022 Class B

    • EN 61000-3-2

    • EN 61000-3-3

    Interference immunity to

    • EN 55024: 2010

    • IEC 61000-4-2

    • IEC 61000-4-3

    • IEC 61000-4-4

    • IEC 61000-4-5

    • IEC 61000-4-6

    • IEC 61000-4-8

    • IEC 61000-4-11

    Hazardous area approval:

    ATEX (Europe)

    • ATEX II 3G Ex ic IIC T4 Gc IP64

    • ATEX II 3D Ex ic IIIB T135°C Dc IP 64

    NEC/CEC (North America)

    • NEC/CEC Class 1, Div. 2, Group A-D T4

    • NEC/CEC Class 1, Zone 2, Group IIC T4

    IECEx (International)

    • IECEx Ex ic IIC T4 Gc IP64

    • IECEx Ex ic IIIB T135° Dc IP64

    Radio approval:

    • CE, FCC, IC
