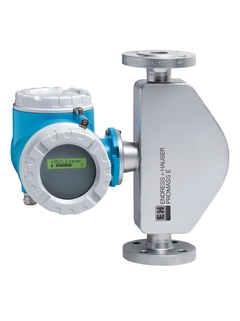

Picture of Coriolis flowmeter Proline Promass 40E for basic applications

Proline Promass 40E
Coriolis flowmeter

The flowmeter for minimized cost of ownership combined with a compact field transmitter

40E
please wait
Loading price
Prices temporarily unavailable
Price on request
from CHF ??.-

Specs at a glance

  • Max. measurement error

    Mass flow (liquid): ±0.5 %
    Volume flow (liquid): ±0.5 %
    Mass flow (gas): ±1.0 %
    Density (liquid): ±0.0005 g/cm³

  • Measuring range

    0 to 180 000 kg/h (0 to 6600 lb/min)

  • Medium temperature range

    –40 to +140 °C (–40 to +284 °F)

  • Max. process pressure

    PN 100, Class 600, 63K

  • Wetted materials

    Measuring tube: 1.4539 (904L)
    Connection: 1.4404 (316/316L)

Field of application

Promass E has a long standing reputation as a cost efficient solution for basic Coriolis applications. Combined with the Promass 40 transmitter for low-end applications and direct integration, Promass 40E offers highly accurate measurement of liquids and gases for a wide range of applications.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Highly accurate measurement of liquids and gases for a wide range of standard applications.

Device properties

  • Compact dual-tube system

  • Medium temperature up to +140 °C (+284 °F)

  • Process pressure: up to 100 bar (1450 psi)

  • 2-line backlit display without local operation

  • Device in compact version

  • HART

Benefits

  • Cost-effective – multi-purpose device; an alternative to conventional volumetric flowmeters

  • Fewer process measuring points – multivariable measurement (flow, temperature)

  • Space-saving installation – no in/outlet run needs

  • Cost-effective – dedicated design for low-end applications and direct integration

  • Safe operation – display provides easy readable process information

  • Fully industry compliant – IEC/EN/NAMUR
