Specs at a glance
-
Measurement range
0 to 200 FTU
0 to 200 ppm DE -
Process temperature
0 to 90 °C (32 to 194 °F) continuous
Max. 130 °C (266 °F) for 2 hours -
Process pressure
Max. 100 bar (1450 psi)
(depending on flow through assembly)
Field of application

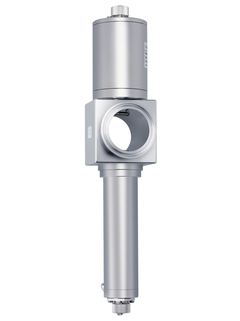

The OUSTF10 scattered light turbidity sensor is used for measurement of suspended solids, emulsions and immiscible fluids in process liquids. It provides you with all desired information from product purity to filter blocking. As a result, you gain more control over the quality of your products and processes. OUSTF10 is ready for all kinds of environments, such as very high temperatures, hazardous areas (ATEX, FM) and hygienic processes (CIP/SIP).
The OUSTF10 sensor measures turbidity for:
Quality control / Purity monitoring
Filter monitoring
Condensate monitoring
Turbidity in breweries
Heat exchanger leakage detection
Turbidity in brine
With its international explosion-protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.
Benefits
Accurate and highly sensitive purity monitoring for better product quality
Low-maintenance sensor with long service life and stable operation
Optional long pass NIR filter to minimize color related measurement errors
Reliable detection of heat exchanger leaks
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Approved for hazardous area use
