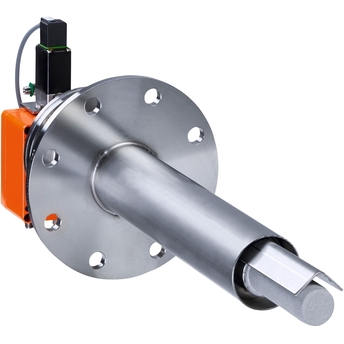

product picture of the process gas analyzer ZIRKOR200

ZIRKOR200
process gas analyzer

Has the innovation already in the cells

IZIRKO2
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

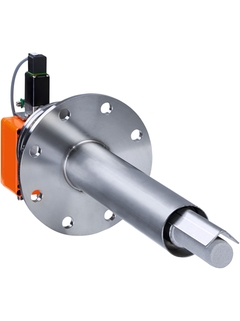

product picture of the process gas analyzer ZIRKOR200
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Measured variables

    O2

  • Measuring range

    O2: 0 ... 25 %

  • Process temperature

    ZIRKOR200 Ex-G measuring probe: ≤ +500 °C

    ZIRKOR200 Ex-G measuring probe with cooling protection tube: ≤ +1,400 °C

    ZIRKOR200 Ex-D measuring probe: ≤ +600 °C

Field of application

The ZIRKOR200 is characterized by a measurement cell with a long service life. The integrated measurement cell monitoring system and fully automated adjustment significantly reduce the maintenance effort. The ZIRKOR remote app allows you to wirelessly access the analyzer quickly and easily. The ZIRKOR200 provides a low-maintenance, simple oxygen measurement system for incineration optimization. Thanks to its suitability test as per EN 15267, it is also suitable for emission monitoring.

  • Incineration optimization

  • Oxygen monitoring for process control

  • Oxygen reference value for emission measurement

  • Monitoring of inert gas atmospheres


Device properties:

  • Self-monitoring electrochemical cell

  • Fully automated adjustment mechanism integrated into the control unit

  • Version for high temperatures available

  • ZIRKOR remote app for remote access to the analyzer

  • Suitability-tested according to EN 15267

  • Ex version for ATEX/IECEx, Zone 1 and Zone 21

Benefits

  • Very high availability due to electrochemical cell with extremely long service life

  • High reliability due to innovative measurement cell protection – even in corrosive or reducing conditions

  • Reduction in analyzer failures because of internal self-monitoring

  • Quick measurement close to the combustion process for timely control

  • Approved for emission monitoring

  • High safety levels because of outstanding Ex safety concept

Videos

  • ZIRKOR200: easy and reliable oxygen measurement
