Four beam alternating light
Optical turbidity measurement from condensate monitoring up to sludge treatment.
Different measuring surfaces depending on the range and application.
0-12g/l(ppm) Activated sludge, centrate 0-40g/l(ppm) Return sludge 0-50g/l(ppm) Primary sludge, digested sludge 1-1000 FNU service water, condensate, boiler feedwater. 10-150g/l(ppm) centrifuge inlet, press inlet.
Four beam pulsed light method for compensation of sensor soiling and wearing of optical components.
Sensor made of stainless steel without moving parts.
Sensor : stainless steel 1.4404 Optical windows : CUS65-A,-C,-E : Epoxy resin CUS65-B, -D : POM O-rings : viton
0°C ... 50°C / 32°F ... 122°F
max. 6bar (87psi)
Fixed cable with SXP plug to the transmitter.
IP68 / NEMA6
Installation and immersion sensor for low, medium and highconcentrations using the four-beam pulsed light method
Trübungsmessung zur Steuerung eines automatischen Trüb-wasserabzugs (ATWA)
Product Code: CUC101-, CUM223-, CUM253-, CUM740-, CUS31-, CUS41-, CUS65- Region/Country: Russia (GOST) Approval Agency: Rosstandart Approval Number: DE.C.31.004.A_39880
No spare parts available.

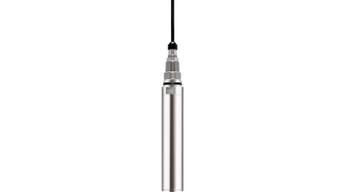

Turbimax CUS51D is a smart suspended solids sensor that allows unnattended operation in a wide range of water & wastewater applications. Just immerse it into your process and measure.

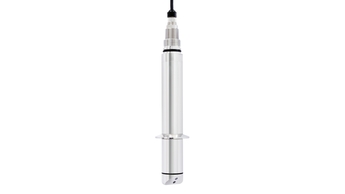

Turbimax CUS52D is a smart inline/immersion turbidity sensor for all water production measuring points. Achieve lab quality measurement without product loss!
