Memosens CPS77E - ISFET pH sensor for food & beverage and life sciences industries

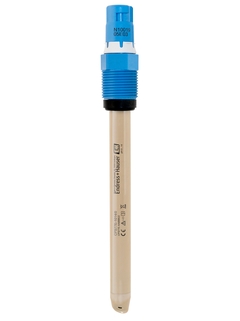

Digital non-glass pH sensor Memosens CPS77E

Memosens 2.0 ISFET pH electrode for food & beverage and life sciences industries

CPS77E
please wait
Loading price
Prices temporarily unavailable
from CHF 803.-

Specs at a glance

  • Measurement range

    pH 0 to 14

  • Process temperature

    -15 to 135°C (5 to 275°F)

  • Process pressure

    Max. 11 bar abs at 100 °C
    (Max. 160 psi at 212 °F)

Field of application

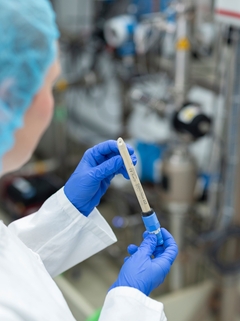

Memosens CPS77E is the expert for hygienic applications. Its bacteria-proof reference with highly stable gel guarantees reliable measurements. The unbreakable sensor is sterilizable with hot steam, autoclavable and assures highest product safety. CPS77E features Memosens 2.0 digital technology, offering extended storage of calibration and process data for predictive maintenance. The sensor resists moisture and enables lab calibration, enhancing process integrity and increasing process uptime.

Hygienic and sterile applications:

  • Food & beverage industry

  • Life sciences

  • Biotechnology

With all relevant approvals for hygienic applications such as EHEDG, 3A, EU1935/2004, USP 87/88.

Benefits

  • Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.

  • Unbreakable PEEK sensor body ensures highest product safety where glass breakage is intolerable.

  • With its certified biocompatibility and pharma compliance (optional Pharma CoC), the sensor protects the quality of your products.

  • The sensor is suitable for hot steam sterilization and autoclaving offering long-term stable measurements.

  • Low maintenance: ISFET technology is insensitive to temperature variations and shows virtually no acid or alkaline errors, allowing for long calibration intervals.

  • Six times higher CIP stability compared to conventional ISFET pH sensors ensures a longer lifetime even when the sensor is exposed to cleaning in place.

  • Maximum process safety: Non-contact inductive signal transmission eliminates all problems due to moisture or corrosion.
