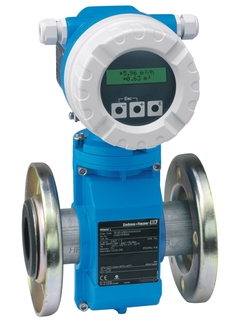

Name: Promag 10L
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Proline Promag 10L for the water and wastewater industry

Successor

F

L

E

X

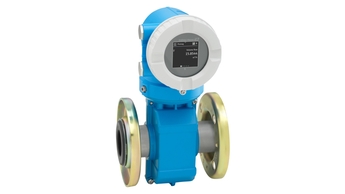

Proline Promag W 10 / 5WBB

Flowmeter for basic water and wastewater applications with easy-to-use operation concept
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Electromagnetic
Product headline

std_productprofile_product_usp_8085.
std_productprofile_product_field_of_application_8025.
Sensor features

std_productprofile_product_benefits_8026. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
std_productprofile_product_differentiating_tech_features_6649. std_productprofile_product_differentiating_tech_features_6650. std_successorproducts_product_differentiating_tech_features_35221_1509522592.
Transmitter features

std_productprofile_product_benefits_34707_1508943674. std_productprofile_product_benefits_34705_1508943673. std_productprofile_product_benefits_34706_1508943673.
2-line display with push buttons. Device as compact or remote version. HART.
Nominal diameter range

Lap joint flange; lap joint flange, stamped plate: DN 25 to 300 (1 to 12")
Fixed flange: DN 350 to 2400 (14 to 90")
Wetted materials

Liner: PTFE; Polyurethane; Hard rubber
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)
Measured variables

Volume flow
Max. measurement error

Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)
Measuring range

9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
Max. process pressure

PN 16, Class 150
Medium temperature range

Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Ambient temperature range

Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing material

DN 25 to 300 (1 to 12"): AlSi10Mg, coated
DN 350 to 2400 (14 to 90"): Carbon steel with protective varnish
Sensor connection housing: AlSi10Mg, coated
Transmitter housing material

Powder‐coated die‐cast aluminum
Degree of protection

Compact version: IP66/67, type 4X enclosure
Sensor remote version (standard): IP66/67, type 4X enclosure
Sensor remote version (option): IP68, type 6P enclosure
Transmitter remote version: IP67, type 4X enclosure
Display/Operation

2-line display with push buttons
Configuration via local display and operating tools possible
Outputs

4‐20 mA HART (active)
Pulse/switch output (passive)
Inputs

None
Digital communication

HART
Power supply

DC 11 to 40 V
AC 85 to 250 V (45 to 65 Hz)
AC 20 to 28 V (45 to 65 Hz)
Hazardous area approvals

cCSAus
Product safety

CE, C-tick
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Hygienic approvals and certificates

Drinking water approval: ACS, KTW-BWGL, NSF 61, WRAS BS 6920

Filter

1 documents

Installation Instructions (EA)

EA Installing ground disks

Installation Instructions (EA)

English version - 10/2025

New version available in English

Promag 10, 23, 50, 51, 53, 55, 100, 200, 300, 500, 800, 400 Index C

Select other languages, versions and see details Hide selection and details

	EN
15/10/2025
09/10/2020

Language:	English
Version:	15/10/2025
File size:	772.1 KB
File name:	EA00070DA2_1625-00.pdf

Share
- Copy Link
- Send Mail
Download

Filter

Search spare parts by number in drawing

60 spare parts & accessories

Kit Main-PCB Promag 10, 85-250VAC

Electronic

Drawing number

Order code

A

50104751
Kit MainPCB Promag10,20-28VAC/11-40VDC

Electronic

Drawing number

Order code

A

50104752
Kit Main-PCB 10 85-250VAC HE

Electronic

Drawing number

Order code

A

71098237
Kit Main-PCB 10 20-28VAC 11-40VDC HE

Electronic

Drawing number

Order code

A

71098239
Kit 10 fuses 1.0 A/250 slow

Electronic

Drawing number

Order code

3

50104749
Kit 10 fuses 1.6 A/250 slow

Electronic

Drawing number

Order code

3

50104750
Kit display 10/91W with keyboard

Display

Drawing number

Order code

B

50104745
Kit connec. board Promag 10 FS elect

Connection (electrical)

Drawing number

Order code

C

50104754
Kit connec. board 10 FS Elekt HE

Connection (electrical)

Drawing number

Order code

C

71098240
Kit connection board D/E/L/P/S/W FS

Connection (electrical)

Drawing number

Order code

D

50098018
Kit connection board D/E/L/P/S/W FS HE

Connection (electrical)

Drawing number

Order code

D

71039497
Kit Terminal Block 10/1YH/91W

Terminals

Drawing number

Order code

1

50108138
Kit Cover Connection terminal

Cover

Drawing number

Order code

13

50094038
Repair kit cover, remote version

Cover

Drawing number

Order code

13

71247838
Kit Cover Connection terminal

Cover

Drawing number

Order code

9

50094038
Kit cover 10/91W with window

Cover

Drawing number

Order code

5

50104746
Kit cover 10/1YH/91W blind version

Cover

Drawing number

Order code

6

50104747
Kit 10 cable glands M20x1,5 grey

Connection (electrical)

Drawing number

Order code

10

50103658
Kit 10 cable glands M20x1,5

Connection (electrical)

Drawing number

Order code

10

50096840
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)

Connection (electrical)

Drawing number

Order code

10

50098041
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)

Connection (electrical)

Drawing number

Order code

10

50098042
Kit PCB/Display carrier 10/91W

Fixing

Drawing number

Order code

4

50104748
Kit hous.gaskets Promag10/1YH housing

Sealing

Drawing number

Order code

7

50104753
Kit Ground terminal/Cover clamp

Housing/housing accessories

Drawing number

Order code

8

50097147
Kit Bushing to field/SS-housing

Housing/housing accessories

Drawing number

Order code

2

50099102
Kit parts housing FS Stnd/HT

Housing/housing accessories

Drawing number

Order code

15

50098019
Kit parts housing compact Stnd/HT

Housing/housing accessories

Drawing number

Order code

12

50098020
Kit housing gasket FS Stnd/HT

Sealing

Drawing number

Order code

14

50098023
Kit housing gasket compact Stnd/HT

Sealing

Drawing number

Order code

11

50098024
Promag 10, transmitter

further parts

Order code

10XXX-
Grounding cable kit, Promag L/W/P/S/E

further parts

Order code

DK5GC-
Promag, grounding disc/protection disc

further parts

Order code

DK5GD-
Serviceinterface FXA193

further parts

Order code

FXA193-
Transmitter Promag, mounting set

Order code

DK5WM-
Sensor cable set, Promag

Order code

DK5019-

Promag 10L

Successor

Proline Promag W 10 / 5WBB

Measuring principle

Product headline

Sensor features

Transmitter features

Nominal diameter range

Wetted materials

Measured variables

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Ambient temperature range

Sensor housing material

Transmitter housing material

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Power supply

Hazardous area approvals

Product safety

Metrological approvals and certificates

Hygienic approvals and certificates

Back

EA Installing ground disks

Back

Kit Main-PCB Promag 10, 85-250VAC

Kit MainPCB Promag10,20-28VAC/11-40VDC

Kit Main-PCB 10 85-250VAC HE

Kit Main-PCB 10 20-28VAC 11-40VDC HE

Kit 10 fuses 1.0 A/250 slow

Kit 10 fuses 1.6 A/250 slow

Kit display 10/91W with keyboard

Kit connec. board Promag 10 FS elect

Kit connec. board 10 FS Elekt HE

Kit connection board D/E/L/P/S/W FS

Kit connection board D/E/L/P/S/W FS HE

Kit Terminal Block 10/1YH/91W

Kit Cover Connection terminal

Repair kit cover, remote version

Kit Cover Connection terminal

Kit cover 10/91W with window

Kit cover 10/1YH/91W blind version

Kit 10 cable glands M20x1,5 grey

Kit 10 cable glands M20x1,5

Kit 10 ext. M20x1.5/G 1/2" (plug PVC)

Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)

Kit PCB/Display carrier 10/91W

Kit hous.gaskets Promag10/1YH housing

Kit Ground terminal/Cover clamp

Kit Bushing to field/SS-housing

Kit parts housing FS Stnd/HT

Kit parts housing compact Stnd/HT

Kit housing gasket FS Stnd/HT

Kit housing gasket compact Stnd/HT

Promag 10, transmitter

Grounding cable kit, Promag L/W/P/S/E

Promag, grounding disc/protection disc

Serviceinterface FXA193

Transmitter Promag, mounting set

Sensor cable set, Promag
