Specs at a glance
-
Measurement range
pH 0-14
-
Process temperature
-15°C ... 135°C
(5°F - 275°F) -
Process pressure
max. 10 bar/100°C (145 psi/212°F)
Field of application

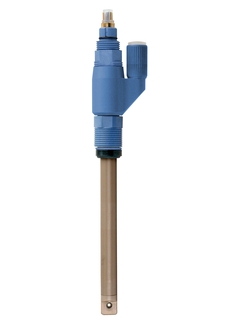

Tophit CPS441 is the analog high performer for media with low conductivity or a high content of organic solvents. Designed for fast response, it accurately measures even in fast-changing medium compositions. Its unbreakable shaft ensures absolute safety of your products.
Media with a high amount of organic solvents or very low conductivities:
Chemical industry including precipitation reactions or dispersions (pressurized version)
Power plants, e.g. boiler feed water
Life sciences, e.g. water for injection
With 3A, ATEX, FM and CSA approval suitable for hygienic applications or hazardous areas.
Benefits
Unbreakable for highest product safety
Resistant to poisoning thanks to constant refilling of KCl bridge electrolyte and separate reference lead
Suitable for sterilization
Low maintenance thanks to long calibration intervals
Videos
-
The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-

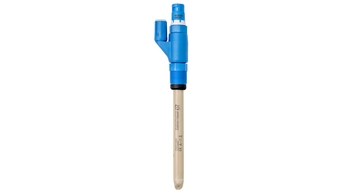

Measuring principle
ISFET
-
Application
- Special applications with high requirements with regard to accuracy and speed - non-glass, break-proof - low temperatures - rapidly changing composition of media - highly clogging media - low conductivities
-
Characteristic
- Ion sensitive field effect transistor (ISFET) technology - overhead installation - rapid response at low temperatures - lower amount of maintenance required than with glass - 3A
-
Measurement range
pH 0-14
-
Measuring principle
- Ceramic diaphragm - liquid lead
-
Design
- All shaft lengths with temperature sensor
-
Material
Peek / metal oxide / ceramic / EPDM
-
Dimension
Diameter: 12 mm (0.47 inch)
Shaft lengths: 120, 225, 360, 425 mm
(4.72/8.86/14.2/16.7 inch) -
Process temperature
-15°C ... 135°C
(5°F - 275°F) -
Process pressure
max. 10 bar/100°C (145 psi/212°F)
-
Temperature sensor
Optional with integrated Pt1000
-
Ex certification
ATEX
FM -
Connection
TOP68 connection head
-
Ingres protection
IP68
-
Additional certifications
EHEDG, 3A
