Specs at a glance
-
Input
0/4…20 mA / HART
feeding/not feeding -
Output
0/4…20 mA / HART
active/passive -
Power Supply
24 V DC
Field of application

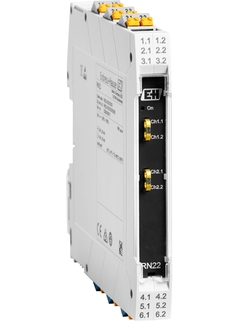

The 1- or 2-channel RN22 active barrier powers analog instrument loops and safety instrumented systems up to SIL 2 (SC 3). The intrinsically safe, HART® transparent interface establishes a reliable link between field devices and process control. It interfaces with 2-/4-wire devices in hazardous areas and provides a second galvanically isolated signal output acc. to NAMUR NE 175. This opens a second channel for the process optimization domain without affecting the traditional automation system.
Single- or two-channel active barrier, power supply or signal doubler
0/4 to 20 mA analog signal transmission (NAMUR NE 43) and galvanic isolation
Intrinsic safety for operation in hazardous areas (Zone 2)
Bidirectional HART® communication (transparent)
2- and 4-wire capability for instruments in hazardous areas (Zones 0/20)
Ambient temperature range: -40 … 60 °C (-40 … 140 °F)
Benefits
-
Intrinsically safe interface device suited for use in safety instrumented systems up to SIL 2 (SC 3) in accordance with IEC 61508
-
Quick and easy wiring with screw or push-in terminals or power supply via power rail T-connector
-
Easy access to frontside HART® connection taps
-
Compact housing: up to two channels on 12.5 mm (0.49 in) for efficient use of space in control cabinets
Videos
Fundamental selection
-
Simple products
- Easy to select, install and operate
Technical excellence
Simplicity

-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
Predecessor
-
-
