Cleanfit P CPA471

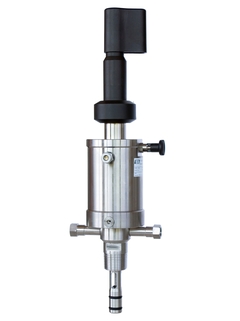

CPA471 retractable assembly is designed for installation in tanks or pipes where space is limited. ©Endress+Hauser

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

  • Measuring principle

    Sensor ORP / Redox

  • Application

    Water, waste water, process

  • Installation

    Retractable holder

  • Characteristic

    Open and closed tank, piping (min. DN80)

  • Design

    - manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber with connection G1/4" or NPT1/4".

  • Material

    Holder : Stainless steel 1.4404Sealing : different material available

  • Dimension

    Immersion deepth : 66 - 208mm

  • Process temperature

    max. 80 bzw.140°C

  • Process pressure

    max. 4,6 bzw.10bar

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50.

  • Additional certifications

    - 3.1.B EN 10204

  • Measuring principle

    Potentiometric

  • Application

    Water, waste water, process

  • Installation

    Retractable assembly

  • Characteristic

    Open and closed tank, piping (min. DN80)

  • Design

    - manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber with connection G1/4" or NPT1/4".

  • Material

    Assembly: Stainless steel 1.4404 Sealing : different material available

  • Dimension

    Immersion depth: 66 - 208 mm
    (2.57 inch - 8.11 inch)

  • Process temperature

    max. 80 bzw. 140°C
    (176°F or 284°F)

  • Process pressure

    max. 4,6 / 10 bar
    (58 psi, 87 psi or 145 psi)

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50.

  • Additional certifications

    - 3.1.B EN 10204

  • Measuring principle

    Amperometric oxygen measurement

  • Application

    Water, waste water, process

  • Characteristic

    Retractable holder.Open and closed tank, piping (min. DN80)

  • Design

    - manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber with connection G1/4" or NPT1/4".

  • Material

    Holder : Stainless steel 1.4404Sealing : different material available

  • Dimension

    Immersion depth : 66 - 208mm
    ( 2.57inch - 8.11inch)

  • Process temperature

    max. 80 bzw.140°C
    ( 176°F or 284°F)

  • Process pressure

    max. 4,6 bzw.10bar
    ( 58psi, 87psi or 145psi)

  • Connection

    DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50.

  • Additional certifications

    - 3.1.B EN 10204

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification

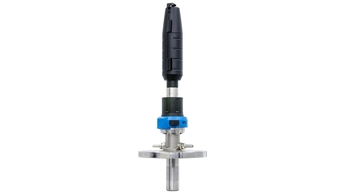

  • Successor
