SS2100 gas analyzer

TDLAS

An advanced gas analyzer for moisture (H2O) measurement. The SS2100 uses Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the analyte without coming into physical contact with the stream.

1

H2O (Moisture): 0-10 to 0-100 ppmv; 0-50 to 0-5000 ppmv

Concentration
Moisture Dew Point
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F)

Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 800-1200 mbara or 950-1700 mbara (optional)

316L Stainless Steel
FKM O-Rings
Glass

120 or 240 VAC ±10%, 50-60 Hz, 300W
(18-24 VDC - optional for electronics only)
3 Amps max @ 120 VAC , 1.5 Amps max @ 240 VAC Hz

Analog Output: Two 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C and Ethernet
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Digital Outputs: 5, Concentration Alarm, General Fault, Validation Fail, Validation 1 Active, Validation 2 Active
Digital Inputs: 2, Flow Alarm, Validation Request

Electronics: 304 or 316L Stainless Steel
Sample System Enclosure: 304 or 316L Stainless Steel

CSA Class I, Division 2
CSA Class I, Zone 2

IP66, Type 4X

TDLAS

An advanced gas analyzer for carbon dioxide (CO2) measurement. The SS2100 uses Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the analyte without coming into physical contact with the stream.

1

CO2 (Carbon Dioxide): 0-10 to 0-1000 ppmv; 0-5000 ppmv to 0-5%

Concentration
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F)

Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 800-1200 mbara or 950-1700 mbara (optional)

316L Stainless Steel
FKM O-Rings
Glass

120 or 240 VAC ±10%, 50-60 Hz, 300W
(18-24 VDC - optional for electronics only)
3 Amps max @ 120 VAC , 1.5 Amps max @ 240 VAC Hz

Analog Output: Two 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C and Ethernet
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Digital Outputs: 5, Concentration Alarm, General Fault, Validation Fail, Validation 1 Active, Validation 2 Active
Digital Inputs: 2, Flow Alarm, Validation Request

Electronics: 304 or 316L Stainless Steel
Sample System Enclosure: 304 or 316L Stainless Steel

CSA Class I, Division 2
CSA Class I, Zone 2

IP66, Type 4X

TDLAS

An advanced gas analyzer for ammonia (NH3) measurement. The SS2100 uses Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the analyte without coming into physical contact with the stream.

1

NH3 (Ammonia): 0-5 ppmv

Concentration
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F)

Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 800-1200 mbara or 950-1700 mbara (optional)

316L Stainless Steel
FKM O-Rings
Glass

120 or 240 VAC ±10%, 50-60 Hz, 300W
(18-24 VDC - optional for electronics only)
3 Amps max @ 120 VAC , 1.5 Amps max @ 240 VAC Hz

Analog Output: Two 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C and Ethernet
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Digital Outputs: 5, Concentration Alarm, General Fault, Validation Fail, Validation 1 Active, Validation 2 Active
Digital Inputs: 2, Flow Alarm, Validation Request

Electronics: 304 or 316L Stainless Steel
Sample System Enclosure: 304 or 316L Stainless Steel

CSA Class I, Division 2
CSA Class I, Zone 2

IP66, Type 4X

TDLAS

An advanced gas analyzer for acetylene (C2H2) measurement. The SS2100 uses Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the analyte without coming into physical contact with the stream.

1

C2H2 (Acetylene): 0-5; 0-3000 ppmv

Concentration
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F)

Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 800-1200 mbara or 950-1700 mbara (optional)

316L Stainless Steel
FKM O-Rings
Glass

120 or 240 VAC ±10%, 50-60 Hz, 300W
(18-24 VDC - optional for electronics only)
3 Amps max @ 120 VAC , 1.5 Amps max @ 240 VAC Hz

Analog Output: Two 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C and Ethernet
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Digital Outputs: 5, Concentration Alarm, General Fault, Validation Fail, Validation 1 Active, Validation 2 Active
Digital Inputs: 2, Flow Alarm, Validation Request

Electronics: 304 or 316L Stainless Steel
Sample System Enclosure: 304 or 316L Stainless Steel

CSA Class I, Division 2
CSA Class I, Zone 2

IP66, Type 4X

TDLAS

Advanced multi-channel gas analyzer for hydrogen sulfide (H2S) and moisture (H2O), also known as a 2-Pack. The SS2100 uses Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the analyte without coming into physical contact with the stream.

2

H2S (Hydrogen Sulfide): 0-10 to 0-1000 ppmv
H2O (Moisture): 0-100 to 0-5000 ppmv

Concentration
Moisture Dew Point
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F)

Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 800-1200 mbara or 950-1700 mbara (optional)

316L Stainless Steel
FKM O-Rings
Glass

120 or 240 VAC ±10%, 50-60 Hz, 300W
(18-24 VDC - optional for electronics only)
3 Amps max @ 120 VAC , 1.5 Amps max @ 240 VAC Hz

Analog Output: Four 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C and Ethernet (H2S) and RS232C or Ethernet (H2O)
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Digital Outputs (H2S): 5, Concentration Alarm, General Fault, Validation Fail, Validation 1 Active, Validation 2 Active
Digital Inputs (H2S): 2, Flow Alarm, Validation Request
Digital Outputs (H2O): 2, Concentration Alarm, General Fault

Electronics: 304 or 316L Stainless Steel
Sample System Enclosure: 304 or 316L Stainless Steel

CSA Class I, Division 2
CSA Class I, Zone 2

IP66, Type 4X

TDLAS

Advanced multi-channel gas analyzer for hydrogen sulfide (H2S) and carbon dioxide (CO2), also known as a 2-Pack. The SS2100 uses Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the analyte without coming into physical contact with the stream.

2

H2S (Hydrogen Sulfide): 0-10 to 0-1000 ppmv
CO2 (Carbon Dioxide): 0-5000 ppmv to 0-5%

Concentration
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F)

Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 800-1200 mbara or 950-1700 mbara (optional)

316L Stainless Steel
FKM O-Rings
Glass

120 or 240 VAC ±10%, 50-60 Hz, 300W
(18-24 VDC - optional for electronics only)
3 Amps max @ 120 VAC , 1.5 Amps max @ 240 VAC Hz

Analog Output: Four 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C and Ethernet (H2S) and RS232C or Ethernet (CO2)
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Digital Outputs (H2S): 5, Concentration Alarm, General Fault, Validation Fail, Validation 1 Active, Validation 2 Active
Digital Inputs (H2S): 2, Flow Alarm, Validation Request
Digital Outputs (CO2): 2, Concentration Alarm, General Fault

Electronics: 304 or 316L Stainless Steel
Sample System Enclosure: 304 or 316L Stainless Steel

CSA Class I, Division 2
CSA Class I, Zone 2

IP66, Type 4X

TDLAS

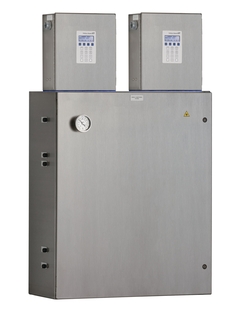

Advanced multi-channel gas analyzer for hydrogen sulfide (H2S), moisture (H2O), and carbon dioxide (CO2), also known as a 3-Pack. The SS2100 uses Tunable Laser Diode Absorption Spectroscopy (TDLAS) to determine the concentration of the analyte without coming into physical contact with the stream.

3

H2S (Hydrogen Sulfide): 0-10 to 0-1000 ppmv
H2O (Moisture): 0-100 to 0-5000 ppmv
CO2 (Carbon Dioxide): 0-5000 ppmv to 0-5%

Concentration
Moisture Dew Point
Cell Pressure
Cell Temperature

-20 to 50°C (-4 to 122°F)
Optional: -10 to 60°C (14 to 140°F)

Inlet Pressure: 140-350 kPa (20-50 psig)
Sample Cell: 800-1200 mbara or 950-1700 mbara (optional)

316L Stainless Steel
FKM O-Rings
Glass

120 or 240 VAC ±10%, 50-60 Hz, 300W
(18-24 VDC - optional for electronics only)
3 Amps max @ 120 VAC , 1.5 Amps max @ 240 VAC Hz

Analog Output: Four 4-20mA Isolated, 1200 ohms @ 24 VDC max load
Serial: RS232C and Ethernet (H2S) and RS232C or Ethernet (H2O/CO2)
Protocol: Modbus Gould RTU or Daniel RTU or ASCII
Digital Outputs (H2S): 5, Concentration Alarm, General Fault, Validation Fail, Validation 1 Active, Validation 2 Active
Digital Inputs (H2S): 2, Flow Alarm, Validation Request
Digital Outputs (H2O/CO2): 2, Concentration Alarm, General Fault

Electronics: 304 or 316L Stainless Steel
Sample System Enclosure: 304 or 316L Stainless Steel

CSA Class I, Division 2
CSA Class I, Zone 2

IP66, Type 4X
