RMA42

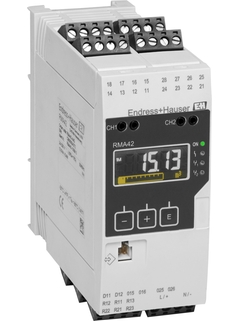

Process transmitter with control unit
Universal transmitter, loop power supply, barrier and limit switch in one device!
Analog measured values are indicated, evaluated and calculated by the process transmitter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.
-
Výhody
SIL 2 approval (optional);
Marine approval
1 or 2 calculated values and linearization table
Min./max. value saved
5-digit 7-segment LC display, backlit
1 or 2 universal inputs
2 relays (optional)
Digital status output (Open Collector)
-
Oblast použití
The RMA42 process transmitter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values...
Dokumenty / software
-
RMA42
Technical Information
Technical Information RMA42 universal process transmitter, with control
unit for DIN rail mounting, for monitoring and displaying an
alog measured valuesTechnická informace (TI) -
RMA42
Operating Instructions
Operating Instructions RMA42 Digital process transmitter with control
unit for top hat rail mountingNávod na uvedení do provozu (BA) -
RMA42
Brief Operating Instructions
Brief operating instructions RMA42
Universal process transmitter with control unit for top hat rail
mountingZkrácený návod (KA)07/19German , English , fr -
ATEX Safety Instructions: II(1) G [Ex ia] IIC, II (1)D [Ex ia] IIIC
Safety instructions for electrical apparatus certified for use in
explosion-hazardous areas.Bezpečnostní pokyny Ex (XA) -
Control Drawing FM approval AIS, ANI RMA42
Process Transmitter with Control Unit RMA42
Installation Notes for Hazardous LocationsCertifikát FM/CSA (ZD) -
Control Drawing CSA AIS, ANI, NI RMA42
Process Transmitter with Control Unit RMA42
Installation Notes for Hazardous LocationsCertifikát FM/CSA (ZD) -
Levelflex FMP54; Levelflex FMP54 with process transmitter RMA42
Planning instructions for steam boiler approval
Guided Level radar as a limiting device for low water an high water
levelsZvláštní dokumentace (SD) -
Levelflex FMP54 and FMP54 with process transmitter RMA42 or RMA422
Safety instructions for steam boiler approval
Special Documentation
Run Time Measurement (TDR)
Zvláštní dokumentace (SD) -
SIL manual RMA42
Functional Safety Manual for Process Transmitter RMA42
Zvláštní dokumentace (SD) -
Manufacturer information NE53
Software update of RIA45, RIA46, RMA42
Informace o výrobci (MI) -
kurier 01-2014
Kundenmagazin: Ihr Partner für mehr Anlagensicherheit
Magazín pro zákazníky (CM)01/14German -
Fachartikel: Doppelt hält besser
Fachartikel: Automatisierungssystem sorgt für sicheren Schiffstransport
Publikace (PU)08/11German -
Sistem Bileşenleri ve Kayıt Cihazları
Sisteminiz için tamamlayıcı çözümler
Pole působnosti (FA)10/14Turkish -
Системные компоненты и Регистраторы
Обзор продукции
Pole působnosti (FA)06/13Russian -
Systemkomponenten und Datenmanager
Lösungen zur Komplettierung der Messstelle
Anzeiger, Interfacegeräte, Überspannungsschutz, Energie- und
Applikationsmanager, Datenmanager, Bildschirmschreiber und
Softwarepakete für die ProzessautomatisierungPole působnosti (FA)04/19German -
System Components and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationPole působnosti (FA)04/19English -
System Components and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationPole působnosti (FA)04/18English -
System Components and Data Managers
Solutions for the loop
Indicators, interface devices, surge arresters, energy and application
managers, data managers, paperless recorders and associated
software packages for process automationPole působnosti (FA)04/18Polish -
System Components
e Data Managers
Componenti di sistema e data manager
Soluzioni per il completamento del punto di misuraPole působnosti (FA)04/18Italian -
Componentes de sistema y registradores
Soluciones para el lazo de control
Indicadores, dispositivos de interfaz, protección contra sobretensiones,
gestores de aplicaciones y energía, registradores sin papel y paquetes
de software asociado para la automatización de procesos.Pole působnosti (FA)03/15Spanish -
Komponenty Systemów kontrolno-pomiarowych
Wskaźniki panelowe i obiektowe, zasilacze, bariery,
przetworniki sygnałów procesowych, ograniczniki przepięć
oraz przemysłowe liczniki ciepła i przepływu.Pole působnosti (FA)03/10Polish -
Produits système et data managers
Solutions associées
Pole působnosti (FA)01/19fr -
Zuverlässige Füllstandmessung mit Radar in Rundkammersilos
Heidelberger Beton vertraut auf Endress+Hauser
RadarfüllstandmesstechnikStudie případů (CS)12/14German -
Mesure de niveau fiable par radar dans les silos circulaires à
compartiments
HeidelbergCement fait confiance au Micropilot FMR56
Studie případů (CS)02/15fr -
Medición de nivel con radar en silos circulares compartimentados
Cementos Heidelberg confía en Micropilot FMR56
Studie případů (CS)02/15Spanish -
Reliable level radar measurement in circular compartment silos
HeidelbergCement trusts Micropilot FMR56
Studie případů (CS)02/15English -
E-direct Produktcatalogus 2018-2019
High quality, low price
Katalogy Endress+Hauser (EC)10/18Dutch -
Catalogue Produits E-direct 2019/2020 Français
La qualité Endress+Hauser à petit prix !
Katalogy Endress+Hauser (EC)09/19fr -
E-direct Produktkatalog 2019/2020
Hohe Qualität zum kleinen Preis!
Katalogy Endress+Hauser (EC)09/19German -
Messumformer RMA42
Universeller Prozesstransmitter mit Steuereinheit, für Montage auf
Hutschiene, zur Überwachung und Darstellung von analogen MesswertenText výběrového řízení12/12German -
DTM Single, RMA42_V1_02, 13.07.2019 (Components, Display, 0x007F)
Common Device Interface,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00Device Type Manager (DTM)1.4.188.38Language neutral -
DTM Single, Display_RMA42_CDI_FW1_03_zz, 11.07.2019 (Components, Display, 0x007F)
Common Device Interface,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00Device Type Manager (DTM)1.4.188.38Language neutral -
DTM Single, RMA42_V1_01, 13.07.2019 (Components, Display, 0x007F)
Common Device Interface,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00Device Type Manager (DTM)1.4.188.38Language neutral -
DTM Single, Display_RMA42_CDI_FW1_02_zz, 11.07.2019 (Components, Display, 0x007F)
Common Device Interface,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00Device Type Manager (DTM)1.4.188.38Language neutral -
ComDTM Single, CDI_CommDTM, 21.01.2019
Common Device Interface,
DeviceCare Version: 1.05.00
FieldCare Version: 2.13.00Communication DTM2.09.06Language neutral -
contactors / transmitters
Kód výrobku: RMA42-
Prohlášení Number: HE_00446_01.17
Výrobce Specifikace: RoHSManufacturer DeclarationEnglish -
contactors / transmitters
Kód výrobku: RMA42-
Prohlášení Number: EC_00184_01.16EU DeclarationGerman , English , fr -
Soliswitch, process displays, Preline, power supply and barrier, power supply, over voltage protector, Mini-Log, Memo-Graph, Ecograph, controller, contactors / transmitters, Configuration Kit
Kód výrobku: RIA452-, RIA452L-, RIA46-, RID14-, RID16-, RMA42-, RMC621-, RMC621L-, RMS621-, RMS621L-, RN221N-, RN221NL-, RNB130-, RNS221-, RNS221L-, RS33-, RSG35-, RSG40-, RSG45-, RTA421-, RTA421L-, TXU10-, RIA45-, FML621-, FTE20-, FTE30-, FTE31-, HAW562-, HAW569-, OFTE20-, ORIA15-, ORIA45-, ORIA46-, ORMA42-, ORSG35-, ORSG45-, OSG40-, OSG45-, RA33-, RB223-, RDL10-, RH33-, RIA14-, RIA15-, RIA16-
Prohlášení Number: EC_00569_01.17EU DeclarationGerman , English , fr -
contactors / transmitters
Kód výrobku: RMA42-
Prohlášení Number: EC_00339_01.16EU DeclarationGerman , English , fr -
contactors / transmitters, process displays
Kód výrobku: RMA42-
Prohlášení Number: SIL_00154_01.17SIL DeclarationGerman , English -
process displays, contactors / transmitters
Kód výrobku: RIA45-, RIA452-, RIA46-, RMA42-
Oblast: Russia (TR CU)
Organizace: EAC
Číslo osvědčení: TC № RU D-DE.AG95.B.00460MiscellaneousRussian -
contactors / transmitters, process displays
Kód výrobku: RIA45-, RIA46-, RMA42-
Oblast: China
Organizace: ACMA
Číslo osvědčení: MD-17035A/09/ENMiscellaneousEnglish -
contactors / transmitters
Kód výrobku: RMA42-
Oblast: USA
Organizace: FM
Kategorie: I,II,III/1+2/ABCDEFG
Ochrana: AIS, [I/O] AEx [ia] IIC, NI, ANIExplosion ProtectionEnglish -
contactors / transmitters
Kód výrobku: RMA42-
Oblast: Europe (ATEX)
Organizace: PTB
Kategorie: II (1) D, II (1) G
Ochrana: [Ex ia] IIC, [Ex ia] IIICExplosion ProtectionGerman , English -
contactors / transmitters
Kód výrobku: RMA42-
Oblast: China
Organizace: NEPSI
Ochrana: [Ex ia Ga] IICExplosion ProtectionChinese -
contactors / transmitters, Levelflex
Kód výrobku: FMP54-, RMA42-
Oblast: Europe
Organizace: TÜVPressure EquipmentGerman , English -
contactors / transmitters
Kód výrobku: RMA42-
Oblast: International
Organizace: DNVGLMarineEnglish -
RTD-thermometer, process displays, Memo-Graph, Field transmitter, Ecograph, contactors / transmitters, head transmitters, DIN Rail Transmitter
Kód výrobku: TMT162-, TMT142-, RIA14-, RIA16-, RIA45-, RIA46-, RMA42-, RSG35-, RSG45-, TMR31-, TMR35-, TMT85-, TMT84-, TMT82-, TMT188-, TMT187-, TMT182-, TMT181-, TMT128-, TMT127-, TMT122-, TMT121-, TMT112-, TMT111-, TMT180-
Oblast: Canada, USA
Organizace: ULOrdinary Location Product SafetyEnglish
Příslušenství / náhradní díly
-
-
Nr 2 Order code RMA42X-DA
Display
-
-
-
Nr 1 Order code RMA42X-HA
Front cover incl. foil
-
-
-
Nr 16 Order code RMA42X-HC
Set fixing lever housing (2 pieces)
-
-
-
Nr 17 Order code RMA42X-HD
Set terminal cover (5 pieces)
-
-
-
Nr 4 Order code RMA42X-NA
Mainboard, 1 Channel w/o relay, non Ex
-
Nr 4 Order code RMA42X-NB
Mainboard, 1 Channel w/o relay, Ex
-
Nr 4 Order code RMA42X-NC
Mainboard, 1 Channel + relay, non Ex
-
Nr 4 Order code RMA42X-ND
Mainboard, 1 Channel + relay, Ex
-
-
-
Order code 51002468
-
-
-
Nr 5 Order code RMA42X-NE
Powerboard, w/o Channel 2, non Ex, 24-230V (-20%...10%)
-
Nr 5 Order code RMA42X-NF
Powerboard, w/o Channel 2, Ex, 24-230V (-20%...10%)
-
Nr 5 Order code RMA42X-NG
Powerboard, with Channel 2, non Ex, 24-230V (-20%...10%)
-
Nr 5 Order code RMA42X-NH
Powerboard, with Channel 2, Ex, 24-230V (-20%...10%)
-
-
-
Nr 7 Order code 71096588
Terminal plug 4p "11 12 13 14" blue
-
-
-
Nr 8 Order code 71096589
Terminal plug 4p "15 16 17 18" blue
-
-
-
Nr 9 Order code 71096590
Terminal plug 4p "21 22 23 24" blue
-
-
-
Nr 10 Order code 71096591
Terminal plug 4p "25 26 27 28" blue
-
-
-
Nr 7 Order code 71096593
Terminal plug 4p "11 12 13 14"
-
-
-
Nr 8 Order code 71096601
Terminal plug 4pole "15 16 17 18"
-
-
-
Nr 9 Order code 71096603
Terminal plug 4pole "21 22 23 24"
-
-
-
Nr 10 Order code 71096611
Terminal plug 4pole "25 26 27 28"
-
-
-
Nr 13 Order code 71142411
Terminal plug 4pol "O16 O15 D12 D11"
-
-
-
Nr 14 Order code 71142413
Terminal plug 4pol "O25 O26"
-
-
-
Nr 11 Order code 71164439
Terminal plug 4pol "R13 R11 R12" coded
-
-
-
Nr 12 Order code 71164440
Terminal plug 4pol "R23 R21 R22" coded
-
-
-
Nr 6 Order code 71164441
Terminal plug 4pol "N / - L / +" cod
-
-
-
Nr 3 Order code RMA42T-
CPU Board (w/o display) RMA42T-
-
-
-
Order code TXU10-
Configuration kit TXU10-
for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.
-
-
Předchůdce
