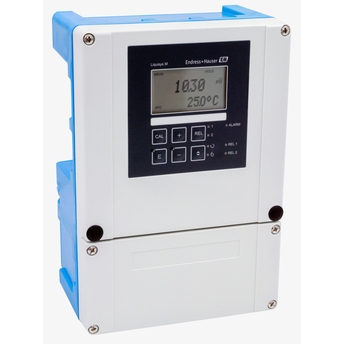

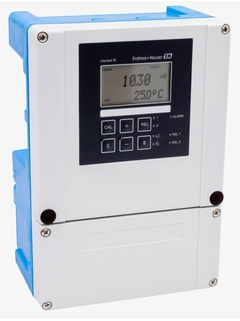

Převodník pH/ORP
Liquisys CPM253
Kompaktní polní převodník pro všechna odvětví
Liquisys CPM253 je standardní pH/ORP převodník pro všechny analogové a digitální senzory Memosens. Zlepšuje provozní bezpečnost díky průběžně probíhající autodiagnostice a ověřování senzoru. K dispozici je mnoho hardwarových a softwarových modulů, jako jsou relé nebo sběrnicová komunikace, s možností přizpůsobit je přesně dané úloze měření. Tato modularita také umožňuje kdykoli převodník upgradovat. Jednoduché menu a dvoubodová kalibrace zrychlují a usnadňují konfiguraci a obsluhu.
Další komponenty
-
Výhody
Vyšší provozní bezpečnost: nepřetržitá systémová kontrola procesů, vlastní konfigurace alarmu, prověřené rozhraní Memosens pro spolehlivé připojení senzoru.
Spolehlivé vlastní monitorování: kontrolní systém senzoru pro pH skla, referencí a kontrola...
-
Oblast použití
Převodník Liquisys CPM253 pracuje se všemi skleněnými pH/ORP a ISFET senzory v prostorách bez nebezpečí výbuchu, například v závodech v rámci těchto průmyslových odvětví:
Chemický průmysl
Potravinářský a nápojový průmysl
Energetika
Vodohospodářství a ...
Dokumenty / software
-
Technical Information CCM 223/
Measurement of chlorine / chlorine dioxide / total chlorine
Transmitter for chlorine sensorsTechnická informace (TI) -
Liquisys M CPM223/253
Technical Information
pH/ORP measurement
Technická informace (TI) -
Operating Instructions Liquisys M CXM223/253 HART
Field Communication with Liquisys M CXM223/253
Návod na uvedení do provozu (BA) -
Liquisys M CPM223/253
Operating Instructions
Transmitter
Návod na uvedení do provozu (BA) -
Operating Instructions Liquisys M CXM223/253 PROFIBUS
Field Communikation for Liquisys M CXM223/253
Návod na uvedení do provozu (BA) -
Ex-safety instructions CXM2X3
Safety instructions for electrical apparatus for explosion-hazardous
areas as per EC Directive 94/9/EC (ATEX)Bezpečnostní pokyny Ex (XA) -
Instructions for service kits Liquisis M
Special documents
Instructions for service kits Liquisis M / CPM253 / CLM253 / COM253 /
CUM253Zvláštní dokumentace (SD) -
Installation of M 12 plug
Special Documentation Installation of M 12 plug
CPM253 / COM253 / CLM253 / CUM253Zvláštní dokumentace (SD) -
Additional information for CSA Liquisys
Additional information for CSA Liquisys
Zvláštní dokumentace (SD) -
Simatic PDM PROFIBUS Package V1.12.00
Manufacturer Information includes PDM - Device List, Release Notes –
PROFIBUS
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.12.00Informace o výrobci (MI) -
PRM FOUNDATION fieldbus Package V1.05.00
Manufacturer Information includes PRM - Device List, Release Notes –
FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.05.00Informace o výrobci (MI) -
AMS FOUNDATION fieldbus Package V1.06.00
Manufacturer Information includes AMS - Device List, Release Notes –
FOUNDATION fieldbus
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.06.00Informace o výrobci (MI) -
Simatic PDM HART Package 1.14.00
Manufacturer Information includes PDM - Device List, Release Notes –
HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.14.00Informace o výrobci (MI) -
PRM HART Package V1.08.00
Manufacturer Information includes PRM - Device List, Release Notes –
HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.08.00Informace o výrobci (MI) -
AMS HART Package V1.12.00
Manufacturer Information includes AMS - Device List, Release Notes –
HART
Manufacturer Information for users regarding software updates
(following the NAMUR recommendation 53)
New software version: 1.12.00Informace o výrobci (MI) -
pH 測定セレクションガイド
産業プロセスにおける pH 測定
Kompetence (CP)08/15Japanese -
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application
Kompetence (CP)04/15English -
Measurement and control aspect of pH using inductively coupled with
bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an
integral part of process. The scrubber efficiency is highlydependent on
the pH. Numerous opportunities were revealed for saving time, as well as
the cost and materials in power plants. In afossil fuel power plant,
the
chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
air
is converted into thermal, mechanical and finally into electrical
energy. In
other words, water is heated to steam, which spins a steam turbine. The
steam turbine drives an electrical generator.Kompetence (CP)04/11English -
CP01202C pH Sensors:Calibrate, clean, perform a calibration check
or...?
This white paper will address
Knowing when to do a pH sensor calibration versus a calibration
check
How to properly clean a pH sensor
How to perform a pH sensor calibration
A decision tree for step by step guidanceKompetence (CP)02/12English -
BAUMANN FEDERN - Modernisierte Abwasserbehandlung
Modernisierung der EMSR-Technik in der Abwasservorbehandlung
Studie případů (CS)03/14fr -
Liquisys CPM253
pH/Redox- und Temperatur Messumformer
Text výběrového řízení12/16German -
Liquisys-M CPM253
1 pH/Redox and temperature transmitter
Text výběrového řízení09/05English -
GSD Single, GSD_EH_DP_AN_Liquisys_0x1520_V02_04_DPLIB, 14.04.2014 (Analys
is, Liquisys M, 0x1520)
PROFIBUS DP,
PROFIBUS System Version: AnyObecný popis zařízení (GSD)2.04.00Language neutral -
GSD Single, GSD_EH_PA_AN_Liquisys_0x1516_V02_00_PALIB, 22.04.2014 (Analys
is, Liquisys M, 0x1516)
PROFIBUS PA,
PROFIBUS System Version: AnyObecný popis zařízení (GSD)2.00.00Language neutral -
DTM Single, LiquisysM_CPM2x3_PA_V2_30___V2_31, 10.07.2019 (Analysis, Liquisys M, 0x1516)
PROFIBUS PA,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00Device Type Manager (DTM)1.5.153.348Language neutral -
DTM Single, LiquisysM_CPM2x3_DP_V2_30___V2_31, 10.07.2019 (Analysis, Liquisys M, 0x1520)
PROFIBUS DP,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00Device Type Manager (DTM)1.5.153.348Language neutral -
DTM Single, LiquisysMPH_CPM2x3_V2_50, 09.07.2019 (Analysis, Liquisys M, 0x0091)
HART,
DeviceCare Version: 1.06.00
Field Xpert - SMT70 Version: 1.03.00
FieldCare Version: 2.13.00Device Type Manager (DTM)1.4.188.39Language neutral -
Liquisys Chlorine, Liquisys Conductivity, Liquisys Oxygen, Liquisys pH/ORP
Kód výrobku: CCM223-, CCM253-, CLM223-, CLM253-, COM223-, COM253-, CPM223-, CPM253-
Prohlášení Number: EC_00575_01.17EU DeclarationGerman , English , fr -
TOCII, Stip-Scan, Stamolys, Sensor, Mycom S, Liquisys pH/ORP, Liquisys Oxygen, Liquisys Conductivity, Liquisys Chlorine, Liquiline M, Liquiline
Kód výrobku: CPM253-, CPM223-, CPM153-, COM253-, COM223-, CM448-, CM444-, CM442-, CM14-, CLM253-, CLM223-, CLM153-, CCM253-, CCM223-, CAM74-, CA72TOC-, CA71SI-, CA71PH-, CA71NO-, CA71MN-, CA71HY-, CA71HA-, CA71FE-, CA71CU-, CA71CR-, CA71COD-, CA71CL-, CA71AM-, CA71AL-
Oblast: Russia (TR CU)
Organizace: EAC
Číslo osvědčení: TC № RU D-DE.MU62.B.02737MiscellaneousRussian -
CeraGel, CeraLiquid, Liquisys pH/ORP, Memosens, OrbiPore, OrbiSint, Sensor, TopHit
Kód výrobku: CPS92D-, CPS91D-, CPS91-, CPS72D-, CPS72-, CPS71D-, CPS71-, CPS64-, CPS471D-, CPS441D-, CPS42D-, CPS42-, CPS41D-, CPS41-, CPS16D-, CPS13-, CPS12D-, CPS12-, CPS11D-, CPS11-, CPM253-, CPM223-
Oblast: Russia (TR CU)
Organizace: EAC
Číslo osvědčení: RU D-DE.ML66.B.02048MiscellaneousRussian -
Liquisys pH/ORP, Mycom S, MyPro
Kód výrobku: CPM153-, CPM223-, CPM253-, CPM431-
Oblast: Russia (GOST)
Organizace: Rosstandart
Číslo osvědčení: DE.C.31.004.A_39878MetrologyRussian -
Liquisys Chlorine, Liquisys Conductivity, LIQUISYS M, Liquisys Oxygen, Liquisys Turbidity, SmarTec S
Kód výrobku: CUM253-, CUM223-, CPM253-, CPM223-, COM253F-, COM253-, COM223F-, COM223-, CLM253-, CLM223F-, CLM223-, CLD134-, CCM253-, CCM223-
Oblast: Canada, USA
Organizace: CSAOrdinary Location Product SafetyEnglish
Příslušenství / náhradní díly
-
-
Nr 410 Order code 51501068
KIT CXM253 housing cover
-
-
-
Nr 335 Order code 71071446
Kit CxM253: Front foil + 6 key lifters
-
-
-
Nr 330,340,450a,450c Order code 51501073
KIT CXM253 Internal housing parts
-
-
-
Nr 400 Order code 51501072
KIT CXM253 bottom of housing
-
-
-
Nr 430 Order code 51501069
KIT CXM/153/253: 2 pair of hinges
-
-
-
Nr 490 Order code 51501087
KIT CXM253 Ground terminal strip
-
-
-
Nr 470 Order code 51501079
KIT CXM253 terminal strip power supply
-
-
-
Order code 50086842
Post mounting kit for LIQUISYS
for mounting the field-transmitters on horizontal or vertical pipes (max. diam. 60 mm). Material: stainless steel V2A
-
-
-
Nr 310 Order code 51501074
KIT CXM253 Ribbon cables
-
-
-
Nr 40 Order code 51501081
KIT CPM2X3 Central module I1
-
Nr 40 Order code 51501083
KIT CPM2x3 central module I1 HART
-
Nr 40 Order code 51501082
KIT CPM2x3 Central modul I2
-
Nr 40 Order code 51501084
KIT CPM2x3 central module I2 HART
-
Nr 40 Order code 51501085
KIT CPM2X3 central module Profibus PA
-
Nr 40 Order code 51502503
Kit CPM2X3 central module Profibus DP
-
Nr 40 Order code 71134724
Kit CPM2x3: Central mod. PB DP; H/W 2.1x
Content: 1x Central module Profibus DP Module name: LSCP-DP qualifired from H/W 2.10
-
-
-
Nr 290 Order code 71134732
Kit CxM2x3: Relay mod. for PBDP; H/W2.1x
Content: 1x Relay module Profibus DP 2x Relay, 1x Current input DP connection qualified from H/W 2.10
-
-
-
Nr 230 Order code 51507096
KIT MKP2 Transmitter module pH/ORP/IsFET
-
Nr 230 Order code 51518244
KIT MKP3 transmitter module pH/ORP
for pH glass sensor and ORP sensor
-
Nr 230 Order code 51514966
KIT MKD1 Memosens-Transmittermodule cpl.
-
-
-
Order code 51517035
Kit Memosens Module+CPS71D+CYK10
-
Order code 51517034
Kit Memosens Module+CPS11D+CYK10
-
Order code 71085858
Kit Memosens Module+CPF81D+CYK10
-
-
-
Nr 10 Order code 51500317
KIT CXM2X3 power supply 100..230 V AC
-
-
-
Nr 20 Order code 51500318
-
-
-
Order code 51500320
Kit CXM2X3 Relaismod. 2rel
Upgrade of LIQUISYS-M basis version by 2 floating changeover contacts.
-
-
-
Nr 290 Order code 51511446
KIT CXM2X3 relay mod. 2rel / CSA
Upgrade of LIQUISYS-M basis version by 2 floating changeover contacts.
-
-
-
Nr 300 Order code 51500321
Kit CXM2X3 Relaismodule 4rel
Upgrade of LIQUISYS-M basic version by 4 floating changeover contacts.
-
Nr 300 Order code 51511447
KIT CXM2X3 relay mod. 4rel / CSA
-
-
-
Nr 290 Order code 51504304
Kit CXM2X3 Relais Mod. 2rel.+I/CSA
Upgrade of LIQUISYS-M basic version by 2 contacts and current input 4-20mA.
-
-
-
Nr 300 Order code 51504305
Kit CXM2X3 Relais Mod. 4Rel+I/CSA
Upgrade of LIQUISYS-M basic version by 4 contacts and current input 4-20mA.
-
-
-
Nr 999 Order code 51501071
KIT CPM253 pH/mV terminal+screen plate
-
-
-
Order code 51500385
Upgrade "Plus-Package" for LIQUISYS-M
Upgrade of LIQUISYS-M basic version (parameter pH,Cond.,Tu,CL,O2 (WX to WS)) to S-version (plus-package). Serial number of instrument needed.
-
Order code 51500963
Upgrade cleaning for LIQUISYS-M
Upgrade of LIQUISYS-M basic version by cleaning functionality (Chemoclean) (serial number of instrument needed). If not yet installed, a 4-relay board must be ordered separately (51500321).
-
-
